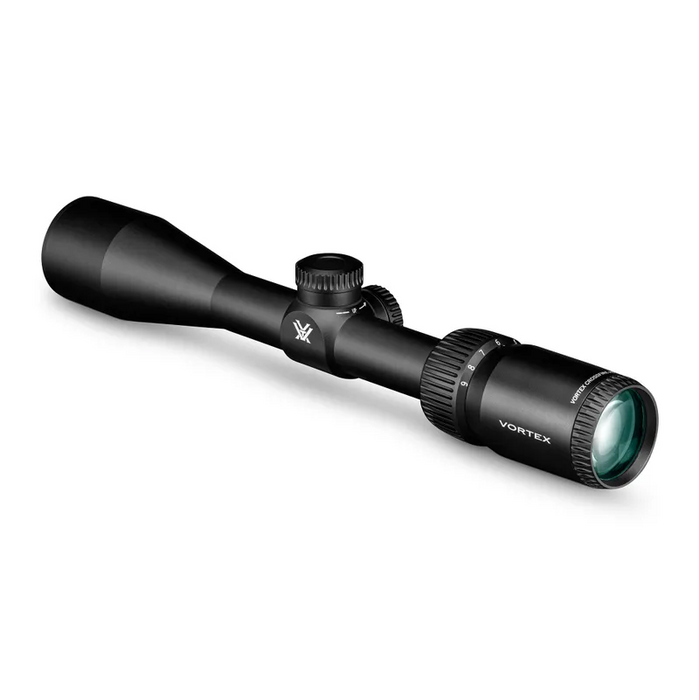

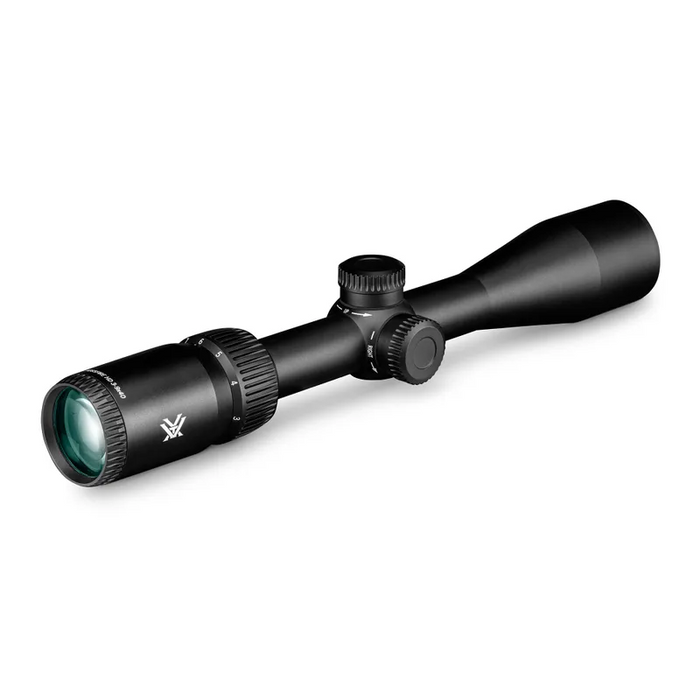

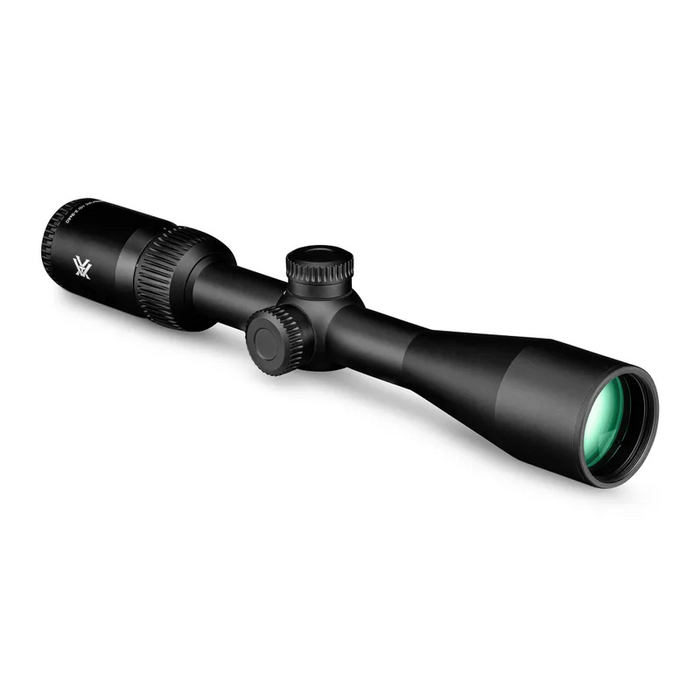

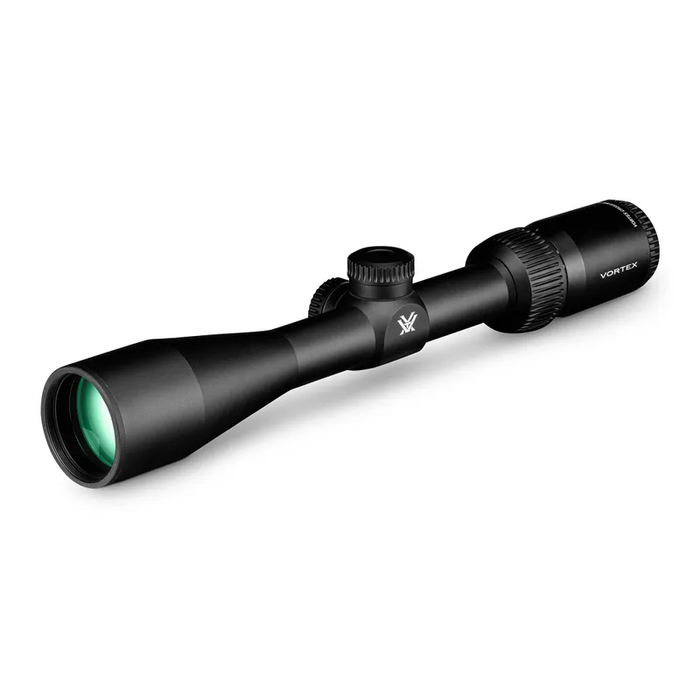

Vortex Optics Crossfire HD 3-9x40 - Dead-Hold

Vortex Optics Crossfire HD 3-9x40 - Dead-Hold

by Vortex Optics
SKU CFR-3901
£212.00 - £212.00
£212.00
£212.00 - £212.00
£212.00
  • Whether threading shots through dense timber or dialing in at extended range, Crossfire® HD delivers sharper detail and improved light transmission, giving you the confidence to own any hunt.
  • All Vortex optics come with an exceptional unlimited lifetime warranty which covers accidental damage and BB strikes, plus all standard warranty conditions. This offers excellent piece of mind and puts the higher price point firmly into focus. Full details can be found below.

    Features:
  • HD Optical System - Optimized with select glass elements to deliver exceptional resolution, cut chromatic aberration, and provide outstanding color fidelity, edge-to-edge sharpness, and light transmission.
  • Fully Multi-Coated Lenses - Anti-reflective coatings on all air-to-glass surfaces provide increased light transmission for greater clarity and low-light performance.
  • Fast-Focus Eyepiece - Allows for quick and easy reticle focusing.
  • Aircraft Grade Aluminum - Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
  • Low-Glare Matte Black Anodize - Corrosion and wear resistant anodization provides low-glare matte surface and helps camouflage the shooter's position.
  • Waterproof - Designed to withstand harsh weather conditions.
  • Fogproof - Designed to withstand a wide range of temperatures.
  • Shockproof - Designed to withstand the highest levels of recoil and impact.

    Specifications:
  • Magnification - 3-9x
  • Objective Lens Diameter - 40 mm
  • Focal Plane - Second Focal Plane

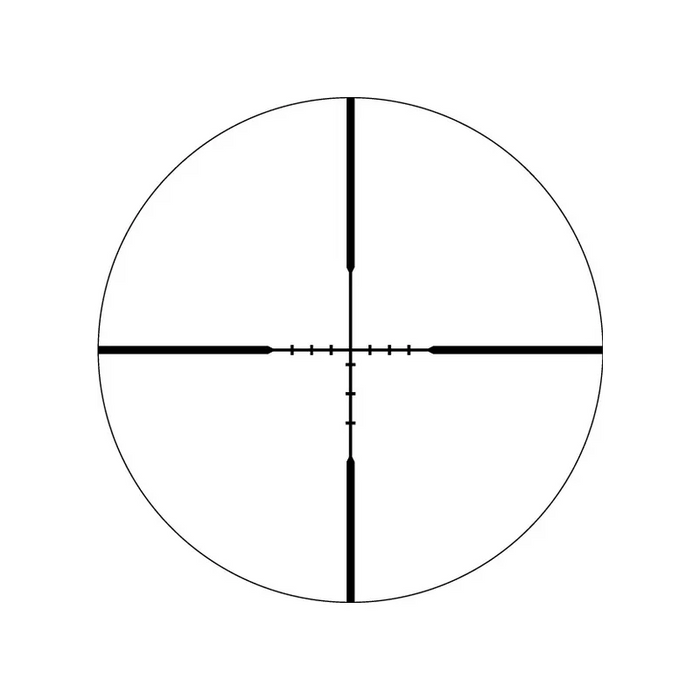

  • Reticle - Dead-Hold® BDC (MOA)
  • Eye Relief - 3.8"
  • Field of View - 37.2' - 12.4' @ 100 yds.
  • Turret Style - Capped
  • Tube Size - 1 inch
  • Adjustment Graduation - 1/4 MOA
  • Travel Per Rotation - 15 MOA
  • Max Elevation Adjustment - 72 MOA
  • Max Windage Adjustment - 72 MOA
  • Parallax Setting - 100 yds.
  • Length - 12.5"
  • Weight - 16.2 oz.

  • Lengths:
    L1    L2    L3    L4    L5    L6
    12.5    1.7    1.9    4.9    4.0    3.7

  • Heights:
    H1    H2
    1.9    1.7

    Manuals & Parts:
  • Reticle Manual (PDF)
  • Product Manual (PDF)
  • Parts Diagram (PDF)
